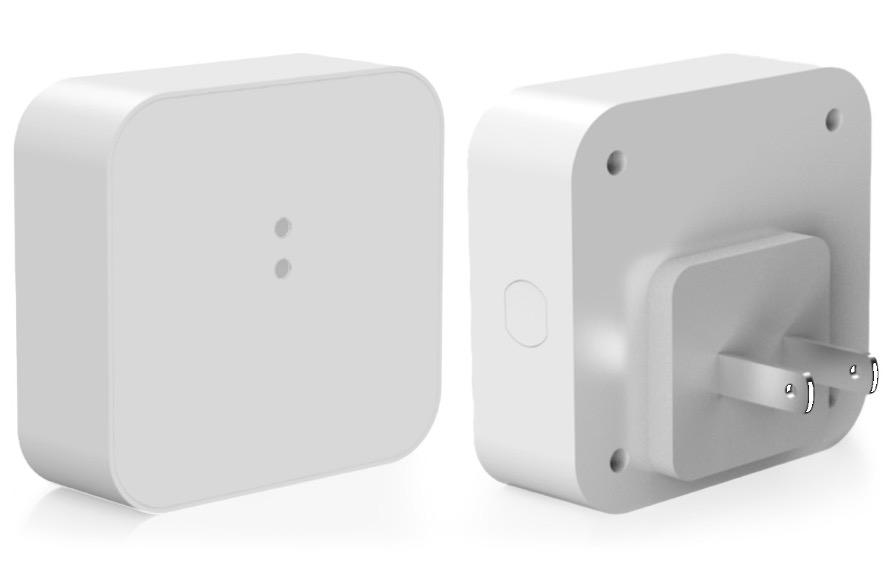

Smart home detection, simplified.
A compact Wi-Fi and Bluetooth® RF sensor for seamless on- or off-network detection. Plug it into any outlet for always-on intelligence and high-speed connectivity across your smart ecosystem.
Precision sensing in a sleek, low-profile design that blends efficiency, power, and performance.
Always-on intelligence. Dual ESP32 processors. Wi-Fi 802.11 b/g/n. Bluetooth V4.2 BR/EDR and V5 LE. UL listed.
| FORM FACTOR 2.48 × 2.48 × 1.02 in | CONNECTIVITY Wi-Fi · Bluetooth 5 LE | SETUP Plug-and-play |
TECHNICAL SPECIFICATIONS · ARCHITECTURE
Inside HALO Connect
Dual processors. Dual radios. One reliable connection.

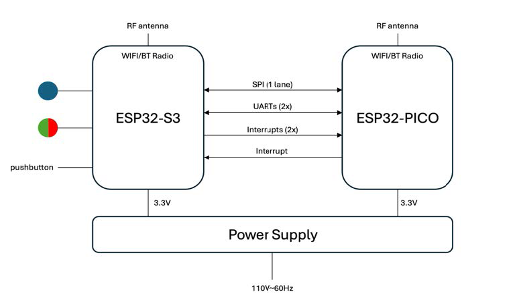

System architecture
Dual ESP32 design
Two processors share work over SPI, dual UARTs, and dedicated interrupts. Each carries its own Wi-Fi/BT radio for resilient on- or off-network detection.
PROCESSORS ESP32-PICO-V3-02 8MB SPI flash, 2MB PSRAM | RF Bluetooth V4.2 BR/EDR + V5 LE Antennas PCB | INTER-PROCESSOR COMM UARTs 2× S3 → PICO interrupts 2× PICO → S3 interrupt 1× | LEDS & BUTTON Status LED Bicolor red / green Button Right side of case |
POWER Draw Max 6 W | CERTIFICATIONS IC ICES-003 Safety UL Listed | DIMENSIONS Height 2.48 in (63 mm) Depth 1.02 in (26 mm) | MOUNTING Orientation Any standard outlet Profile Low-profile |
